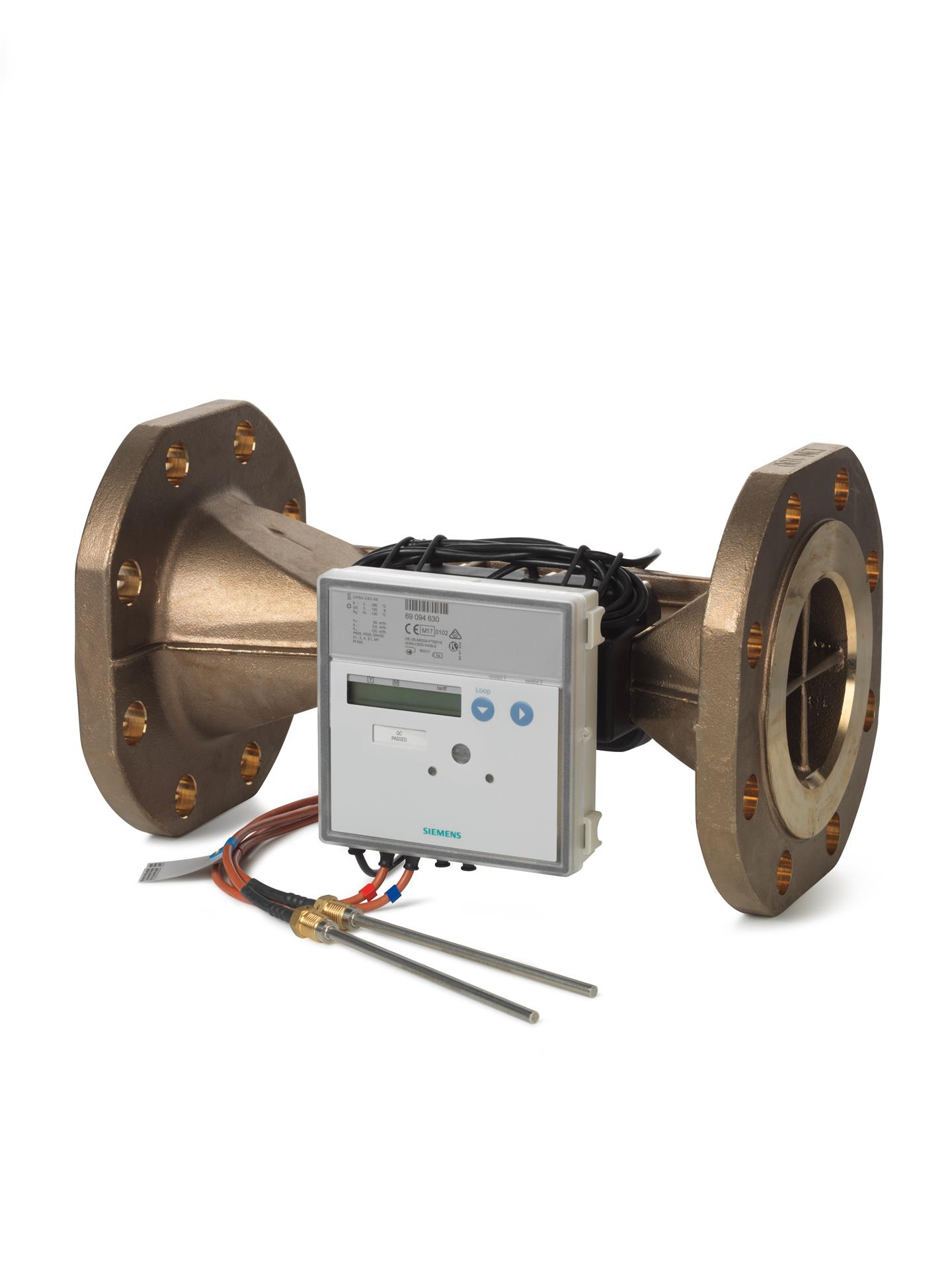

The Siemens UH50-A61-00 is a high-performance ultrasonic heat and cooling energy meter designed for accurate energy consumption measurements in hydronic heating and cooling circuits. It operates based on non-wearing ultrasonic technology, which ensures long-term durability without the need for moving parts. The meter is capable of automatically switching between heat and cooling energy measurements, making it versatile for a wide range of applications. It is approved according to EN 1434 and MID accuracy class 2 standards, providing reliable and precise results. The UH50-A61-00 is suitable for installation in horizontal or vertical positions in return piping systems. Additionally, the meter features an optical interface for configuration and data readout, along with self-diagnostic capabilities for error detection.

Key Features:

• Non-wearing ultrasonic measurement technology.
• Heat, cooling, or combined energy measurement with automatic switch-over.
• MID accuracy class 2 certified.
• Flexible installation in both horizontal and vertical orientations.
• Optical communication interface for easy configuration and readout.
• Continuous self-diagnostics for error detection and monitoring.
