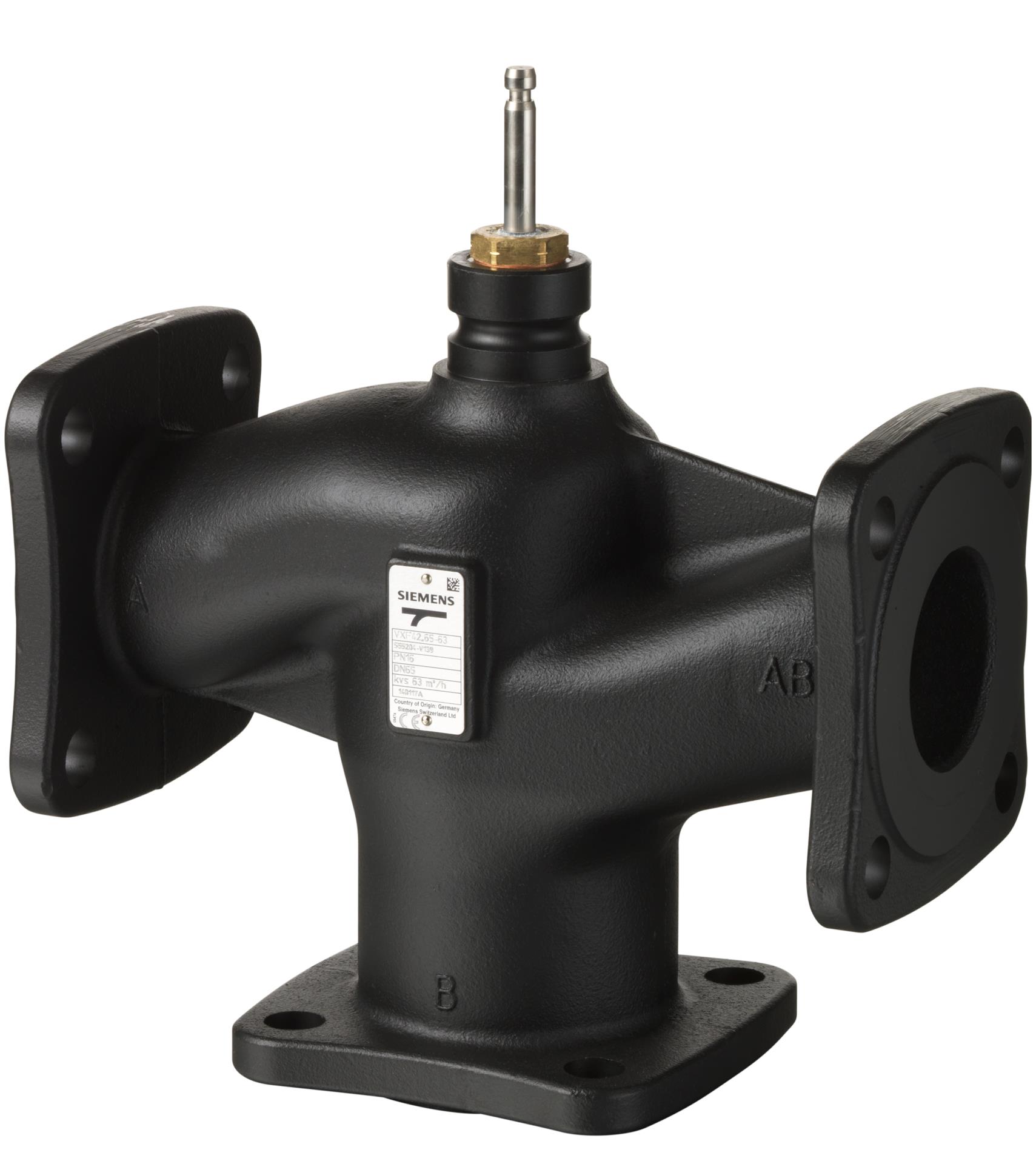

The Siemens VXF32.80-100 is a durable 3-port control valve with a flow capacity of 100 m³/h, designed for HVAC systems. It offers precise control for mixing and diverting applications, and is compatible with Siemens actuators.
VXF32.80-100 – 80mm 3-Port flanged cast iron seat valve, PN10 – kvs = 100
VXF32.80-100 – 80mm 3-Port flanged cast iron seat valve, PN10 – kvs = 100
The Siemens VXF32.80-100 is a 3-port control valve designed for use in medium to large-scale heating, ventilation, and air conditioning (HVAC) systems. It is ideal for applications requiring mixing or diverting functions in closed circuits. With a flow capacity (kvs) of 100 m³/h, the valve provides precise flow control for high-demand systems. The valve is constructed from grey cast iron for durability and has flanged connections, ensuring easy installation and reliable performance. It is compatible with Siemens motorized and electrohydraulic actuators.
Key Features:
- Grey cast iron body (EN-GJL-250)
- DN 80 with a flow capacity (kvs) of 100 m³/h
- Suitable for medium temperatures from -10°C to 150°C
- Flanged connections (PN 10)
- Compatible with Siemens SAX, SAV, SKD, SKB, and SKC actuators
