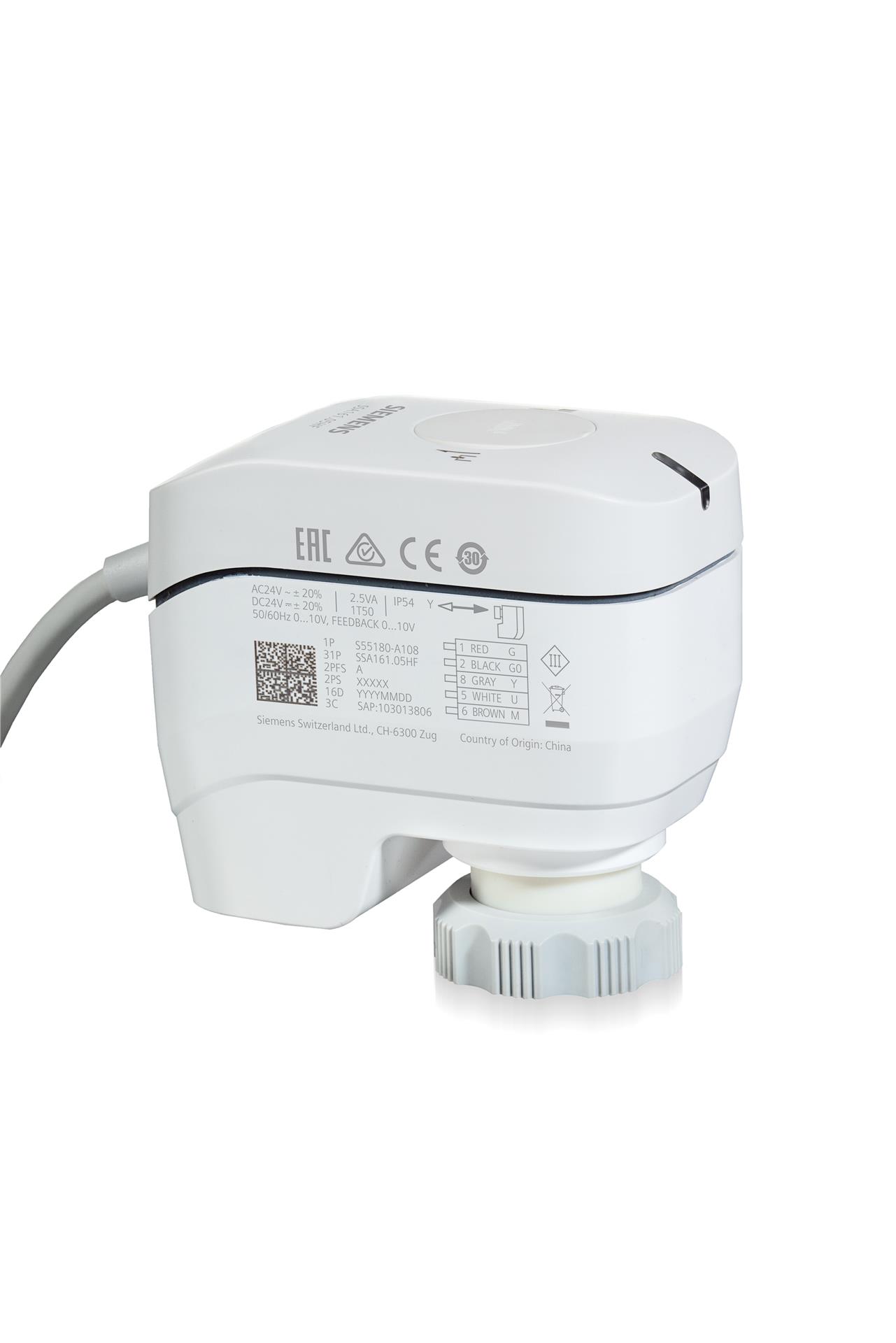

The Siemens SSA161E.05HF is a 24 V electromotoric actuator with a 100 N positioning force, designed for use with combi valves and radiator valves, offering self-calibration and DC 0…10 V control signal​.
SSA161E.05HF – AC 24Vac/dc, 0…10V
SSA161E.05HF – AC 24Vac/dc, 0…10V
The Siemens SSA161E.05HF is an electromotoric actuator designed for use with pressure-independent combi valves (PICV), radiator valves, MiniCombi valves (MCV), and small globe valves in HVAC systems. It operates with a DC 0…10 V control signal and offers a positioning force of 100 N. This actuator is ideal for applications in radiator, chilled ceiling, variable air volume (VAV), and fan coil unit control. It features self-calibration to the valve stroke, LED motion indication, and allows parallel operation of multiple actuators.
Key Features:
- Operating voltage: AC/DC 24 V
- Control signal: DC 0…10 V
- Positioning force: 100 N
- Self-calibrating to valve stroke
- Compatible with Siemens VPI46, VPP46, VPD, and VPE valves
- Integral 1.5 m cable
